Sony high quality CMOS image sensor allows UV470-NDI to output image at 4K resolution and 60 frames per second. So the camera is capable of capturing detailed expression and movement to deliver true-to-life image.
[AI-powered Auto Tracking Technology]
With top automatic tracking and framing technology, integrated face and human shape recognition algorithms, it provides tracking function.
[High Precision and Silent PTZ Movement]
Equipped with high precision PTZ, UV470 boasts speedy and silent PTZ movement.
Camera and Lens Parametersโ
| Parameter | Specification |
|---|---|
| โCamera & Lens Parametersโ | |
| Optical Zoom | 31x Optical Zoom |
| Digital Zoom | 8x |
| Image Sensor | 1/1.8-inch High-Quality CMOS Sensor |
| Effective Pixels | 8.42 Megapixels (16:9) |
| Focal Length Range | f = 6.91 ~ 214.64 mm |
| Angle of View | 60ยฐ ~ 1.98ยฐ (Horizontal) |
| Aperture Range | F1.35 ~ F4.6 |
| Video Signal | โHDMI & 12G-SDI Interface Formats:โโ 3840x2160P @ 60/59.94/50/30/29.97/25 fps 1920x1080P @ 60/59.94/50/30/29.97/25 fps 1920x1080I @ 60/59.94/50 fps 1280x720P @ 60/59.94/50 fps โ3G-SDI Interface Formats:โโ 1920x1080P @ 60/59.94/50/30/29.97/25 fps 1920x1080I @ 60/59.94/50 fps 1280x720P @ 60/59.94/50 fps โUSB 3.0 Interface Formats (YUY2):โโ 1920x1080P @ 60 fps, 1280×720 / 960×540 / 800×600 / 640x480P @ 30 fps โUSB 2.0 Interface Formats:โโ YUY2: 640×360 / 432x240P @ 30 fps; 720×480 / 800x448P @ 25 fps NV12: 640×480 / 432×240 / 640x360P @ 30 fps; 800x448P @ 25 fps H.264: Resolutions up to 3840×2160 @ frame rates from 5 to 60 fps H.265: Resolutions up to 1920×1080 @ frame rates from 5 to 60 fps MJPEG: Resolutions up to 3840×2160 @ frame rates from 5 to 60 fps โLAN Interface Formats:โโ Main Stream (H.264/H.265): 3840×2160 / 1920×1080 / 1280×720, up to 60 fps Sub Stream (H.264/H.265): 720×480 / 640×360 / 640×480 / 320×240, up to 30 fps Note: 3G-SDI and USB 2.0 are standard; 12G-SDI and USB 3.0 are optional. |
| Parameter | Specification |
| :— | :— |
| Minimum Illumination | 0.5 Lux (F1.35, AGC ON) |
| Digital Noise Reduction | 3D Digital Noise Reduction |
| White Balance Mode | Auto / Manual / One-Push WB / Specific Color Temp (2400K-7100K, 100K steps) |
| Focus Mode | Auto / Manual / One-Push Focus |
| Aperture Control | Auto / Manual |
| Electronic Shutter | Auto / Manual |
| Backlight Compensation | On / Off |
| Dynamic Range | Off / Adjustable Level |
| Video Adjustment | Adjustable parameters: Brightness, Sharpness, Saturation, Contrast, White Balance, Anti-flicker, Low Light Compensation, etc. |
| Signal-to-Noise Ratio | > 50 dB |
| โInterface Features & Performanceโ | |
| :— | :— |

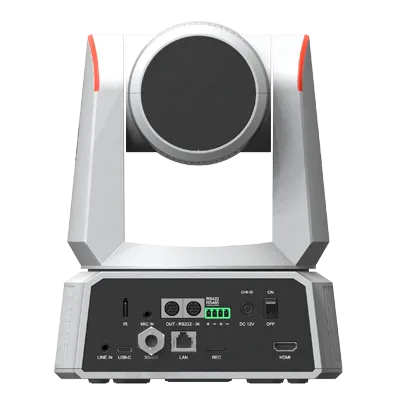

| Product Interfaces | HDMI, SDI (12G/3G-SDI optional), LAN (Supports PoE+), USB-C (U3/U2 optional), Line IN, MIC IN, RS-232 IN & OUT, RS-422/485, Micro-SD Card, DC 12V Power, Power Switch |
| Video Compression Formats | LAN: H.264, H.265 USB 3.0: YUY2, NV12 USB 2.0: MJPEG, H.264, H.265, YUY2, NV12 |
| Video Bitrate | 64 kbps – 40,960 kbps |
| Bitrate Control | Constant Bitrate (CBR), Variable Bitrate (VBR) |
| Frame Rate | 50 Hz: 1 fps ~ 50 fps 60 Hz: 1 fps ~ 60 fps |
| Audio Input Interface | 3.5mm Stereo Line Input; 3.5mm Stereo Microphone Input |
| Audio Output Interface | HDMI, LAN, USB-C, SDI (12G/3G) |
| Audio Bitrate | 32 Kbps, 48 Kbps, 64 Kbps, 96 Kbps, 128 Kbps |
| Audio Compression Format | AAC |
| Network Interface | 1000M Ethernet Port, Optional PoE+, Audio/Video Output |
| Network Protocols | RTSP, RTMP, ONVIF, GB/T 28181, SRT, FreeD, NDI |
| Control Interface | RS-232 IN, RS-232 OUT, RS-422/485 |
| Serial Communication Protocol | VISCA / Pelco-D / Pelco-P; Supports baud rates: 115200 / 38400 / 9600 / 4800 / 2400 |
| USB Communication Protocol | UVC (Video), UAC (Audio) |
| Power Interface | HEC3800 Power Socket (DC12V) |
| Power Adapter | Input: AC 110V ~ 220V; Output: DC 12V / 2.5A |
| Input Voltage | DC 12V ยฑ10% |
| Input Current | โค 1.5 A |
| Power Consumption | โค 18 W |
| โDante AV-Hโ | |
| :— | :— |
| Codec | H.264 |
| Video Format | 1920×1080 / 1280x720P @ 60/50/30/25 fps |
| Video Stream | Unicast or Multicast |
| Latency | โค 120 ms @ 1080p60 |
| Bandwidth | 4-8 Mbps @ 1080p60 |
| โPTZ Parametersโ | |
| :— | :— |
| Pan Range | -170ยฐ ~ +170ยฐ |
| Tilt Range | -90ยฐ ~ +120ยฐ |
| Pan Speed | 0.1ยฐ/s ~ 120ยฐ/s |
| Tilt Speed | 0.1ยฐ/s ~ 60ยฐ/s |
| Preset Speed | Pan: 120ยฐ/s; Tilt: 60ยฐ/s |
| Number of Presets | Up to 255 user-defined presets (10 accessible via remote) |
| โMonocular Trackingโ | |
| :— | :— |
| Tracking Modes | Off, Real-time Tracking, Stage Tracking, Zone Tracking, Smart Framing, Hybrid Tracking |
| Tracking Distance | Up to 18 meters |
| โOther Parametersโ | |
| :— | :— |
| Storage Temperature | -10โ ~ +70โ |
| Storage Humidity | 20% ~ 95% RH |
| Operating Temperature | -10โ ~ +50โ |
| Operating Humidity | 20% ~ 80% RH |
| Dimensions (L x W x H) | 188 mm x 164 mm x 236 mm |
| Weight (Approx.) | Approx. 2 kg |
| Operating Environment | Indoor |
